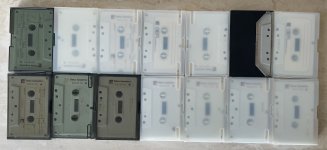

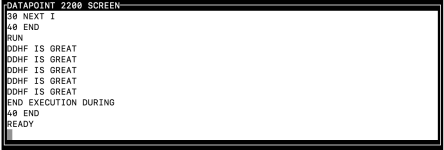

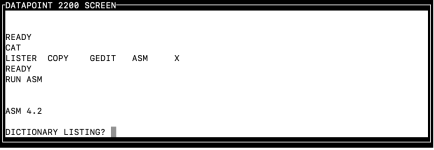

Yes. It would be great to find a CTOS cassette and then be able to duplicate that one. Apparently someone called "maxwooood" has one:
Meanwhile I started to look at the PSU. The PSU is located in the back of the unit and is mounted to a big heat sink.
The left part is the deflection amplifier. A 2200 machine is not using conventional raster scan. Instead it does "diddlescan". It paints the entire character and then goes on to the next. The right part is the PSU.
One annoying thing from a safety perspective is that all the transistors to the left above is connected to mains..
Then when I started looking at the schemtic I found out that the PSU in the back is not self-contained. There signals going in and out of the 50 pin connector which controls the PSU.
A very unusual design, but then switch mode supplies weren't that common in the early seventies.
If I understand the design correctly Q8-Q11 s a buck converter with L1 and CR5 which is supposed to create a regulated 60VDC which then fed into a push-pull converter around Q13 and Q14 with transformer T1. It seems to be self-resonant.
Apparently the 14KC control signal is coming from the 50 pin connector then all output voltages as well as sense and reference levels go through this same 50 pin connector which seems to end up in a backplane in the terminal. How nice to have live levels inside the backplane! I wonder how many Datapoint service engineers that were killed by this design while working on them in the field...
Need to figure out a way of testing the PSU out without killing myself...
