I bought a Toshiba T3100e from ebay, but unfortunately due to shipping problems, the screen of my computer was damaged.
I took it open according to the maintenance manual, this computer uses a plasma display panel (PDP), the screen model is "MD400F640PD6", I measured the drive line of the screen using a logic analyzer (the "data.zip" in the attachment is the result of my measurement, using two rates to measure 8M/6M, The clock frequency measured by oscilloscope is 4.2Mhz, which can be opened by PulseView software.)
Can anyone help me see how this computer drives this screen?
I would like to replace it with another type of screen, thank you very much!

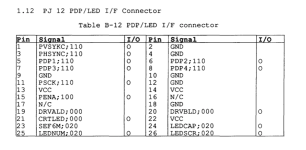

![t3100e-PDP-Port.png t3100e-PDP-Port.png](https://forum.vcfed.org/data/attachments/98/98539-8ea208919f83d6720cb95e2caae86cad.jpg)
