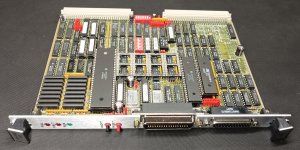

Found these boards, still sealed. No idea what they are, or who made them for what purpose.

The 2 boards look like PSUs and the 3 pack, some kind of logic board.

Any ideas and/or useful to anyone?

View attachment 1291643

View attachment 1291645

Hi Jannie,
Definitely EXORbus, Looks like a board that uses (or sources) only ±12V and some sort of buffered I/O board. I am not convinced that is a CPU board. I think the big 40 pin IC (IC 21) may be for a VIA or MC6821 PIA. EXORbus cards were very commonly used for Programmable Logic Controllers for scientific and industrial machinery, but it is difficult to tell exactly what yours do. Definitely specialized, and not generic modules. Any idea as to the source?
Thanks
--Eric



[marcopolo]

Hello,

For those who are interested, I have just scanned the MVME104 MVME105 MVME106 and MVME107 user's manual:
http://marc.retronik.fr/motorola/?dir=68K/VME/Boards/MVME105 MC68010 CPU

My 105:



[marcopolo]

I've just finished scanning the BUG and DIAGS manuals for the MVME135.
http://marc.retronik.fr/motorola/?dir=68K/VME/Boards/MVME135 MC68020 CPU
